Front doors named LIM (aluminium) - production time 7 weeks.
Doors named PIVOT (aluminium) - production time 7 weeks

How can I measure the hole in the wall for door installation?

The picture shows the dimensions of the door with the frame and how to measure the opening for door installation. Please take the measure from the floor "tile or wooden panel" inside the house to the top brick level.
The space for the door installation should be between a minimum 5mm / 0.2"  to 20mm / 0.8" larger than the overall size of the door with the frame. This space is necessary as it should be filled with foam during the installation. This will also ensure insulation between the wall and the door frame.





How many years is the warranty on the front doors?

Doors named LIM (aluminium) - 5-year warranty

Doors named PIVOT (aluminium) - 5-year warranty

What are the doors made of?

All LIM doors and PIVOT doors are made entirely of aluminium. The door is insulated inside with foam and then covered with aluminium sheet.

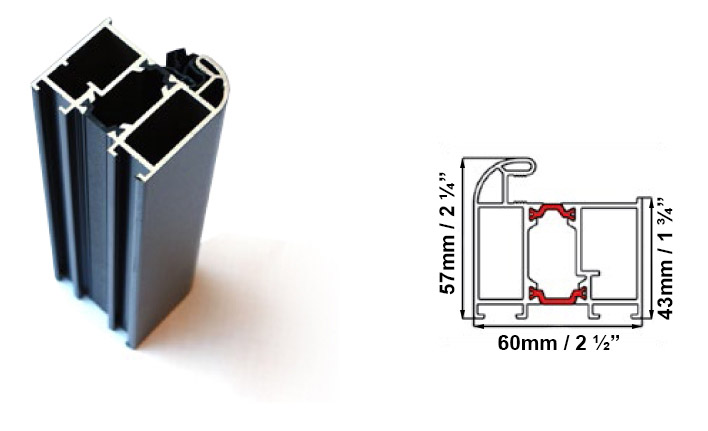

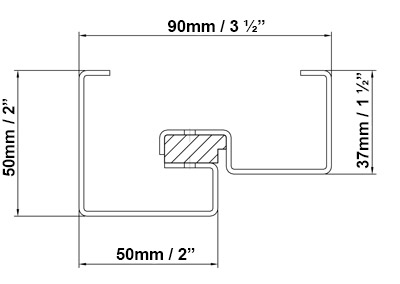

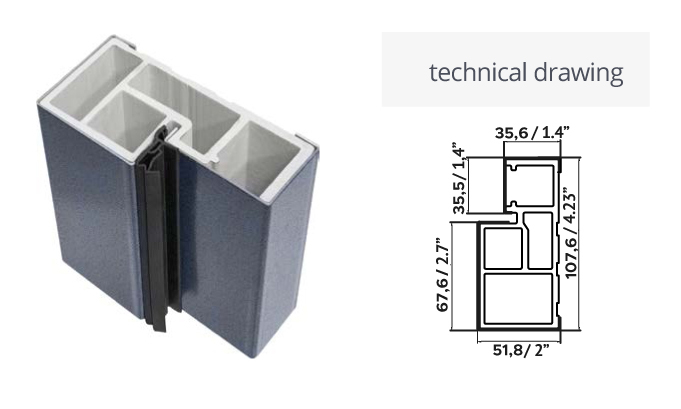

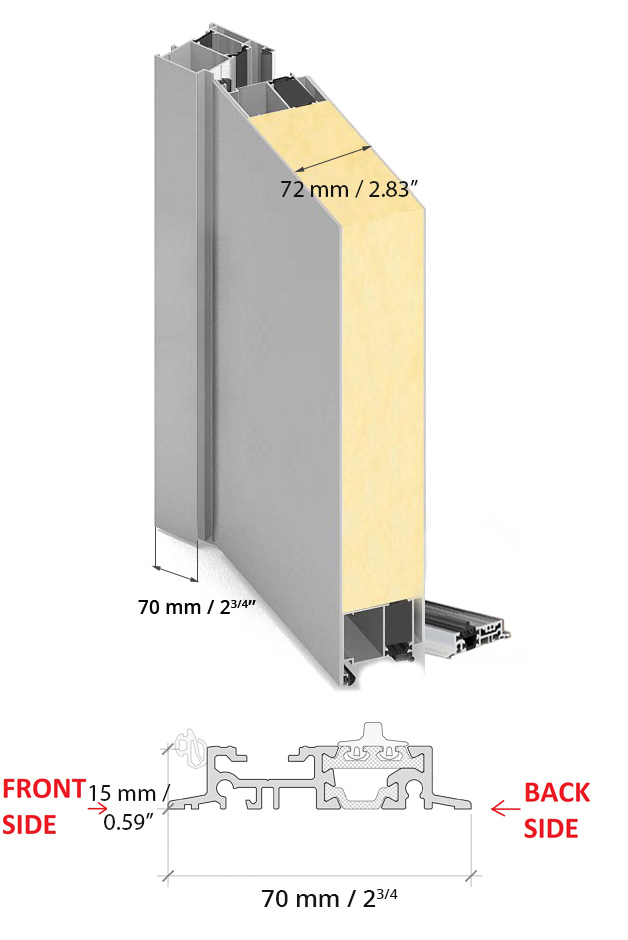

What is the size of the LIM door frame?

The size of the aluminium front door frame is 2.8"

What is the size of the Pivot door frame?

The size of the Pivot front door frame is 3 inches

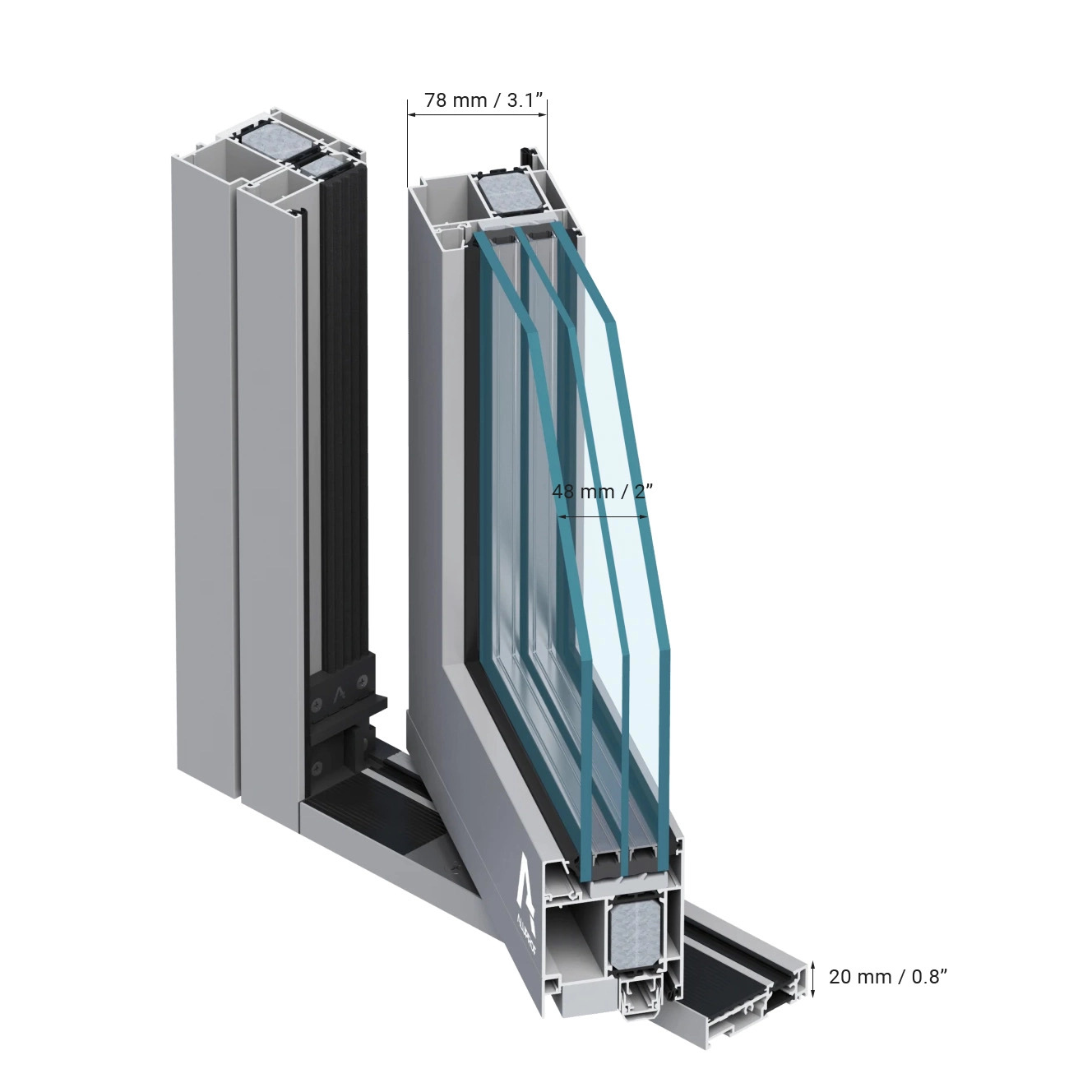

Pivot door cross-section in full glass version

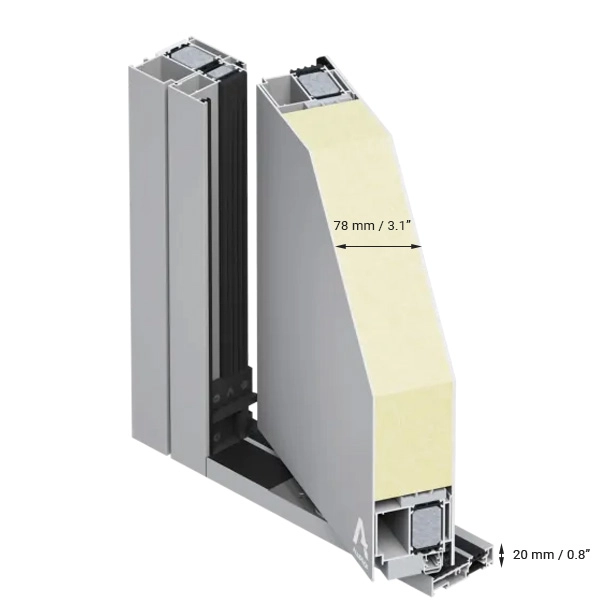

Pivot door cross-section with an aluminum overlay panel


What is the cost of delivery?

We deliver all our products for free in the AUSTRALIA.

What single door size do you offer

Door named LIM

Width between: 900mm and 1550mm
Height between: 2000mm and 2860mm


Width between: 1400mm and 1800mm
Height between: 2000mm and 2800mm

Can the hinges, locks, and handles be black?

Yes, we can produce all our doors with hinges, locks, and handles in black color. However, there is an additional charge for the black hardware.

What kind of glass is used in the front door?

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Are the doors delivered with a frame and locks?

Yes, our doors are delivered with frame and a set of locks. Each lock contains a set of 5 keys.

Is the side panel openable?

Yes, one panel is always openable for doors with a single panel. If the door contains two panels on both sides, then the panels are not openable.

Can we install our own smart lock in the door?

Yes, you can install your own smart lock but we do not take any responsibility for it and we deliver our door with a standard lock.

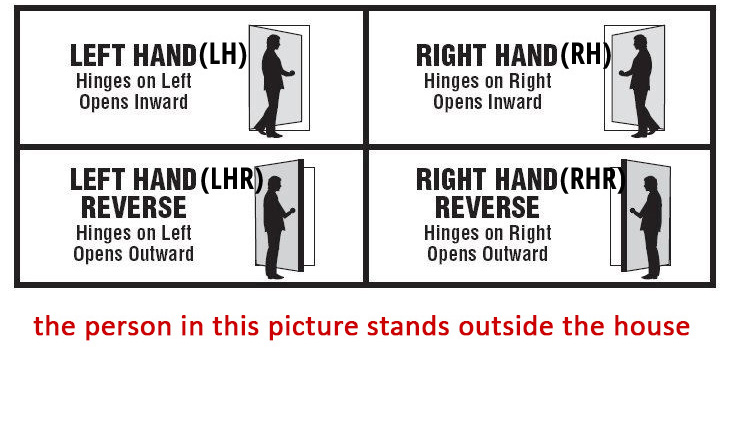

How can I choose the door opening way?

Please check the drawing below. the person in this picture stands outside the building.

Where can I see your door already installed?

We have many customers in Australia where you can see the door after installation. Please check the link to see the portfolio of our doors after installation.

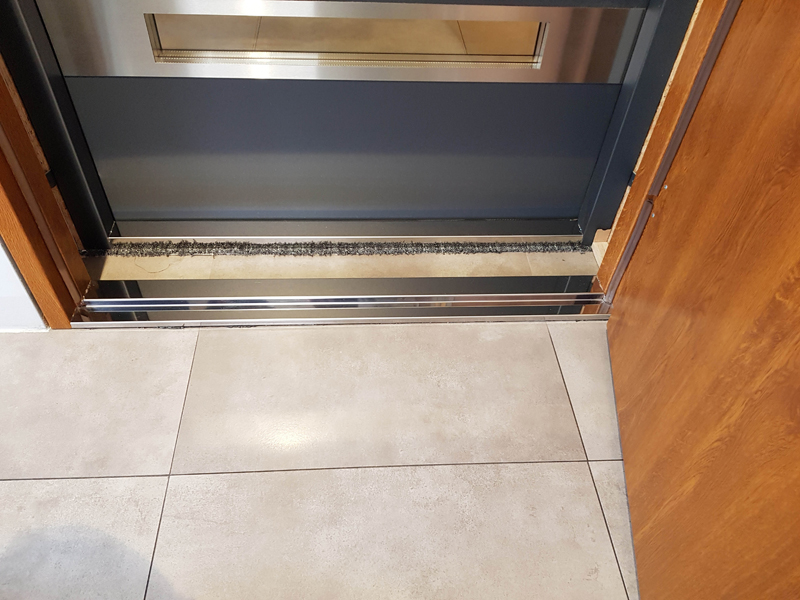

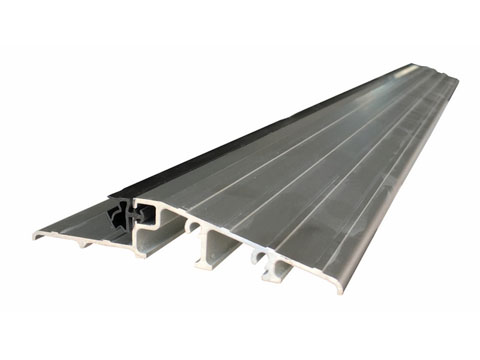

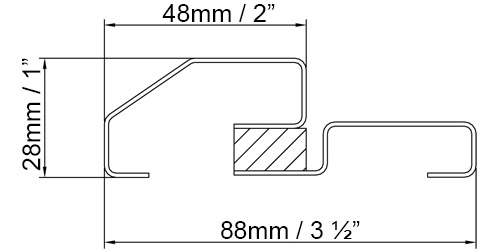

What the door threshold looks like for LIM collection

Dimensions and real pictures of the door threshold from the LIM collection

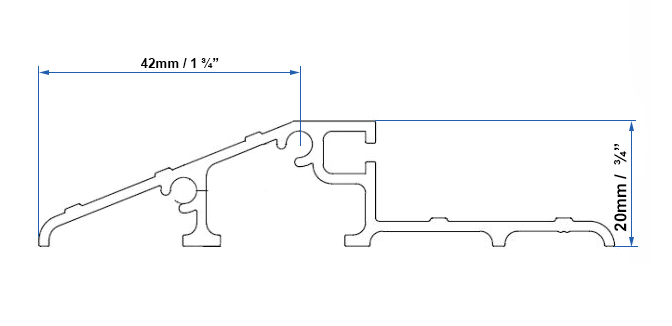

What the door threshold looks like for Pivot collection

Dimensions and real pictures of the Pivot door threshold

Light permeability of the glass & How does one way mirror work?

Light permeability of the glass:
- Milk – frosted glass 89%
- Mirror glass – 68 %
- Bronze Reflex glass – 42 %

One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.

To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.

What is the RAL pallet color number?

RAL pallet colors you can check in the picture below.

What does the multi-point lock system for LIM doors look like?




What does the multi-point lock system for Pivot doors look like?
