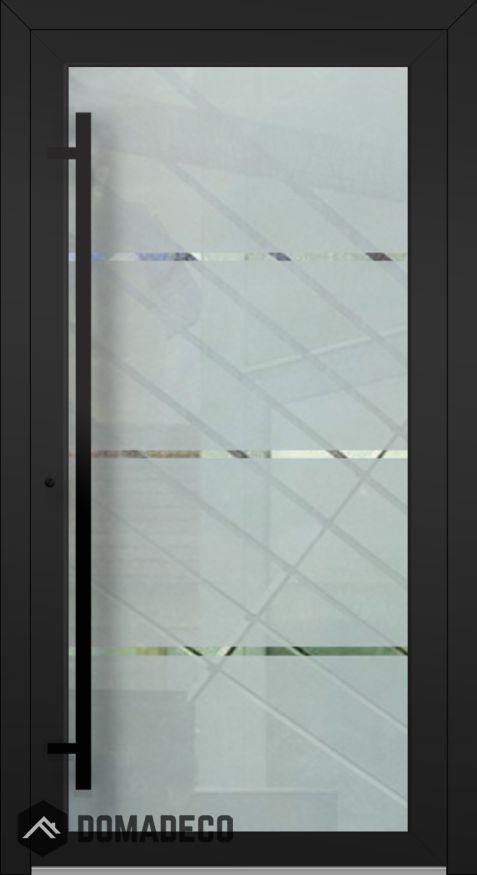

LIM Glass S3 - frosted main door with three transparent stripe

SKU
LIM Glass S3
Rating:
100 % of 100
1  Review Add Your Review
AVAILABLE
A$9,295.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 900mm to 1295mm
Height from: 2000mm to 2440mm

Available door colors:
 anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 48 mm
Thermal insulation: Ud = 1.2 W/(m2*K)

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.
Frequently Asked Questions: click here to check

-
+
A$9,295.00

The price includes TAX & shipping

Add to Wish List
Email
We found other products you might like!

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM Glass S3 - frosted main door with three transparent stripe
Your Rating

The LIM Glass S3 frosted main door with three transparent stripes is an exquisite blend of contemporary design and practical functionality, crafted to enhance the entrance of any modern home or commercial space. This door is meticulously designed to offer an ideal combination of privacy, natural light, and aesthetic appeal, making it a standout choice for those who appreciate elegance with a touch of innovation.

At the forefront of the LIM Glass S3’s design is its premium frosted glass surface. The frosted finish provides a sleek, matte appearance that effectively obscures direct views, ensuring privacy without completely blocking out light. This unique characteristic allows ambient daylight to filter softly through the door, creating a warm and welcoming atmosphere inside while maintaining a sense of seclusion. The frosting is expertly applied to achieve a consistent, refined look that complements a variety of architectural styles, from minimalist and modern to more traditional settings.

Distinctively, the door features three evenly spaced transparent stripes that run horizontally across its surface. These clear glass bands introduce a striking contrast against the frosted backdrop, adding depth and visual interest to the overall design. Beyond aesthetics, the transparent stripes serve a functional purpose by permitting controlled glimpses of the environment on either side of the door. This clever design element allows natural light to penetrate deeper into the entryway, brightening the interior space and fostering a subtle connection between the indoors and outdoors while still preserving privacy.

Constructed with durability and safety in mind, the LIM Glass S3 door utilizes high-quality tempered or laminated glass that offers enhanced strength and impact resistance. This ensures the door withstands everyday use, environmental factors, and potential security challenges with ease. The robust frame and hardware components are designed for smooth operation, secure locking, and long-lasting performance, providing peace of mind alongside aesthetic appeal.

Versatility is another key attribute of the LIM Glass S3 door. Its neutral frosted finish and understated transparent accents allow it to integrate seamlessly into a wide range of design schemes. Whether paired with metal, wood, or composite frames, the door complements various textures and colors, making it adaptable for both new constructions and renovation projects. Additionally, the glass surface is easy to clean and maintain, ensuring the door remains pristine and visually striking over time.

In summary, the LIM Glass S3 frosted main door with three transparent stripes is a perfect synthesis of style, privacy, and functionality. It offers a sophisticated entry solution that enhances the curb appeal and interior ambiance of any property. Ideal for homeowners and business owners who desire a modern, secure, and visually captivating entrance, this door represents a smart investment that combines innovative design with enduring quality.
