Production time for our doors: door named LIM (aluminium) - production takes 7 weeks door named STA (stainless steel) - production takes 4 weeks door named FARGO (stainless steel) - production takes 8 weeks
Size door with frame: Width from: 900mm to 1550mm Height from: 2000mm to 2860mm
Glass panels width with frame: from 300 mm to 1800 mm
Available door colors: anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette
The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (WALA).
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 70 mm / 2.75"
Thermal insulation: Ud = 0.7 W/(m2*K) / R-Value 8.3
Sound insulation: 30dB
The door set includes:
Aluminium door and the door frame;
door handle made of stainless steel;
3-part roller hinges in the same color as the door;
Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
Threshold strip 15 mm height;
Standard lock insert with 5 keys.
Glazing
The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1
standard glazing package 4th/16Ar/4/16Ar/4th
safety glass 33.1//4//4
P4 anti-burglary
Types of glazing
There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.
One way mirror glass has a thin layer of reflective coating which allows the glass to reflect half the light that hits it. Simultaneously, half the light also goes straight through. This makes the glass both reflective and transparent. During the day, the outside is bright which means that people who are outside are not able to see what is inside the house. However, during the night when the light is on, the one-way mirror turns into a window. People are able to see through the glass both ways.
To solve the issue, one can apply the one-way vision foil. The foil consists of hundreds of small holes enabling light penetration, which gives the effect of semi-transmission. It is usually used for advertisement on buses or windows.
Colours
Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.
Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!
RAL 1003
RAL 2004
RAL 3020
RAL 5002
RAL 6005
RAL 6021
RAL 7016
RAL 7039
RAL 7040
RAL 9016
RAL 9005
RAL 9007
DECORAL woodgrain finish palette
Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.
Golden Oak
Mahogany
Walnut
Wenge
Beech
Wala Hidden Hinges
We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.
Roller hinges WR WALA
WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.
ALUPROF STYLE handles
ALUPROF handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches. The INOX version is made of matt stainless steel. Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3". The escutcheon/cover plate is 33 mm / 0.14" wide.
T-bar - long vertical handle or normal handle:
Stainless steel door handles are designed for one or two-sided use for external doors. The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:
Q10 T-bar with a square section of 40×40 mm / 1.6"x1.6". Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".
Q45 T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6" Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".
P10 T-bar with a round cross-section ⌀ 40 mm / 1.6" . Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9"
P45 T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6". Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".
Z18 Black, designer handle. Available in length 480 mm / 18.9".
Z20 Black T-bar with an interesting design Available in length 498 mm / 19.6".
Z32 Black T-bar with an interesting curve that can also be used for all-glass doors Available in length 499 mm / 19.6".
Z24 Black, oval handle Width 450 mm/ 17.7"
Z52 T-bar round z52 copper ⌀ 198 mm / 7.8"
Z53 T-bar round z53 silvershine ⌀ 198 mm / 7.8"
Z54 T-bar round z54 slivergalaxy ⌀ 198 mm / 7.8"
Recessed T-bar recessed Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"
Multi-point lock Hook-bolts 855GL type-11
steel hooks and pins
Three-dimensional locking with integrated hooks and metal pins for optimal security.
Pressure adjustment.
Class A insert 6.D.C cylinder with keys
Durability: 100 000 cycles Security rating: Class 6 the highest Attack resistance: Class D the highest Burglar resistance: Class C the highest
Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

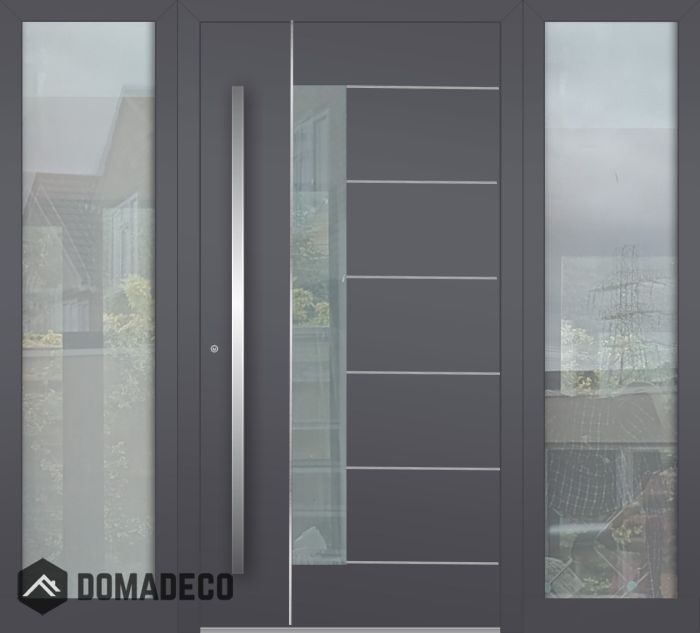

The Aluminum LIM hinged front door with left and right sidelight is a sophisticated and modern addition to any home or commercial property. Crafted from high-quality aluminum, this door exudes durability and elegance, making it a standout feature in any entryway. The inclusion of left and right sidelights not only enhances the overall aesthetic appeal but also serves a practical purpose by allowing natural light to filter into the space, creating a bright and welcoming atmosphere.
The hinged mechanism of the Aluminum LIM front door ensures smooth and effortless operation, providing easy access while maintaining security and stability. The left and right sidelights further enhance the functionality of the door by offering increased visibility and a seamless connection between indoor and outdoor spaces. This thoughtful design detail not only adds to the curb appeal of the property but also enhances the overall user experience.
With its sleek design and contemporary finish, the Aluminum LIM hinged front door with left and right sidelight is a versatile choice that can complement a variety of architectural styles. Whether you're looking to make a bold statement with a modern entrance or add a touch of sophistication to a traditional facade, this door is sure to impress. Elevate the look of your property with the Aluminum LIM hinged front door and create a welcoming and stylish entry point that leaves a lasting impression on guests and visitors alike.
