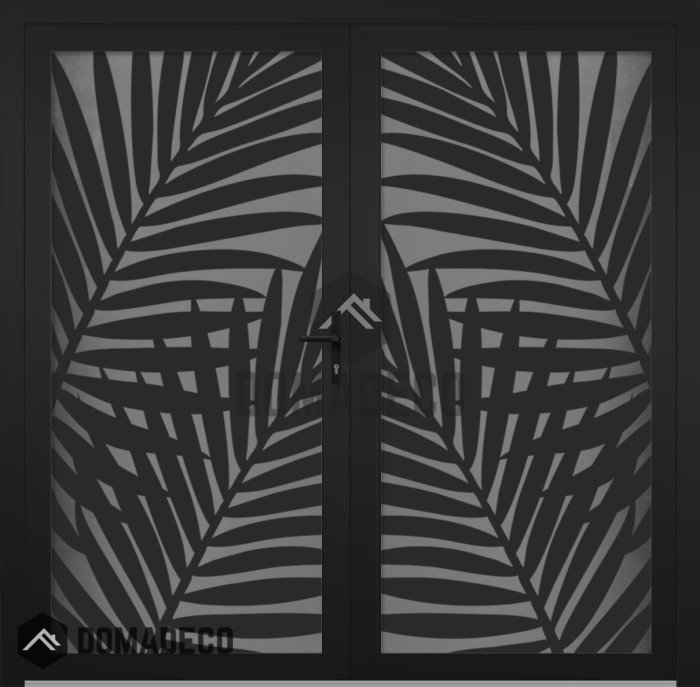

LIM G3 double - Double glass aluminium door with decorative panel

SKU
LIM G3 double
AVAILABLE
A$17,680.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named LIM (aluminium) - production takes 6 weeks
door named STA (stainless steel) - production takes 4 weeks
door named FARGO (stainless steel) - production takes 7 weeks

Size door with frame:
Width from: 1600mm to 2600mm
Height from: 2000mm to 2440mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

Specification:

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Glazing in the door leaf: triple glazing glass
Thickness of polyurethane foam in the leaf: 48 mm
Thermal insulation: Ud = 1.2 W/(m2*K)

The door set includes:

- Aluminium door and the door frame;
- door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 15 mm height;
- anti-burglary class lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.

Frequently Asked Questions: click here to check

-
+
A$17,680.00

The price includes TAX & shipping

Profile construction

Specification

  • frame depth: 70 mm / 2.76 inch ,
  • Thermal insulation: Ud = 1.0 W/(m2*K) / R-Value 5.6
  • The multi-point lock FUHR is used for locking
  • Thickness of polyurethane foam in the leaf: 48 mm / 1.9"

The door set includes:

  • Aluminum door and the door frame;
  • door handles made of stainless steel;
  • roller hinges in the same color as the door
  • Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
  • Threshold strip 15 mm / 0.59" height;
  • anti-burglary class lock insert with 5 keys.

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

DECORAL woodgrain finish palette

Aluminium doors can also have more traditional, woodlike finishes such as: beech, sweet cherry, golden oak, winchester, mahogany, walnut, dark oak, pine, cherry, wenge.



Golden Oak

Mahogany

Walnut

Wenge

Beech

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2" to 0.2", gap: -2.5 to 2.5 mm / -0.1" to 0.1" , seal pressure: -1.5 to 1.5 mm / -0.05" to 0.05" . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

greenteQ handles

QreenteQ handles are made of anodized aluminum with high resistance to corrosion, weather conditions and scratches.
The INOX version is made of matt stainless steel.
Handle with fixed/rotary bearing and return spring mechanism adapted to the pin square 8 mm / 0.3".
TThe escutcheon/cover plate is 35 mm / 0.14" wide.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1500 / 59", 1800 mm / 70.9".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Multi-point lock Hook-bolts 855GL type-11

  • steel hooks and pins
  • Three-dimensional locking with integrated hooks and metal pins for optimal security.
  • Pressure adjustment.

Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches).
Innovative anti-drill and anti-picking protection.
Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:LIM G3 double - Double glass aluminium door with decorative panel
Your Rating

The LIM G3 Double is a sophisticated double glass aluminum door designed to seamlessly blend contemporary aesthetics with exceptional functionality. Engineered with high-quality aluminum, this door boasts remarkable strength and durability, making it an ideal choice for both residential and commercial applications. Its corrosion-resistant frame ensures longevity and minimal maintenance, even in harsh weather conditions, while the sleek design adds a modern, elegant touch to any building facade.

At the heart of the LIM G3 Double door are its double glass panels, which provide outstanding thermal insulation and soundproofing benefits. The double glazing helps to maintain comfortable indoor temperatures by reducing heat transfer, contributing to energy efficiency and lower utility bills. Additionally, the enhanced sound insulation creates a quieter indoor environment by significantly minimizing external noise pollution. The glass panels are also manufactured from safety glass, ensuring resilience against impacts and enhancing overall security without sacrificing natural light.

What truly sets the LIM G3 Double door apart is its decorative panel feature, which offers a unique opportunity to personalize and elevate the door’s visual appeal. Available in a variety of patterns, textures, and finishes, the decorative panel can be customized to suit diverse architectural styles and design preferences. Whether you desire a subtle, minimalist look or a bold, artistic statement, this feature transforms the door into a striking centerpiece that enhances the overall curb appeal and interior décor.

The double door configuration of the LIM G3 enhances both accessibility and aesthetic presence. Its wide opening facilitates easy passage of people and large items, making it highly practical for busy households, office environments, or commercial spaces. Coupled with high-quality locking mechanisms and hardware, the door ensures robust security while maintaining smooth and effortless operation. This perfect balance of safety and style provides peace of mind for property owners.

Versatility is a hallmark of the LIM G3 Double door. It is well-suited for a wide range of applications, including main entrances, patios, storefronts, and internal partitions. Its robust aluminum construction is designed to withstand heavy usage without compromising its refined appearance, ensuring that it remains a long-lasting and valuable asset. Furthermore, the door’s eco-friendly materials and energy-efficient glazing align with sustainable building practices, making it a responsible choice for environmentally conscious projects.

In summary, the LIM G3 Double double glass aluminum door with decorative panel exemplifies the fusion of durability, innovation, and artistic design. Offering superior insulation, enhanced security, and customizable aesthetics, it meets and exceeds the demands of modern architecture. Whether upgrading a home or enhancing a commercial property, the LIM G3 Double door delivers lasting beauty, performance, and value that stands the test of time.
