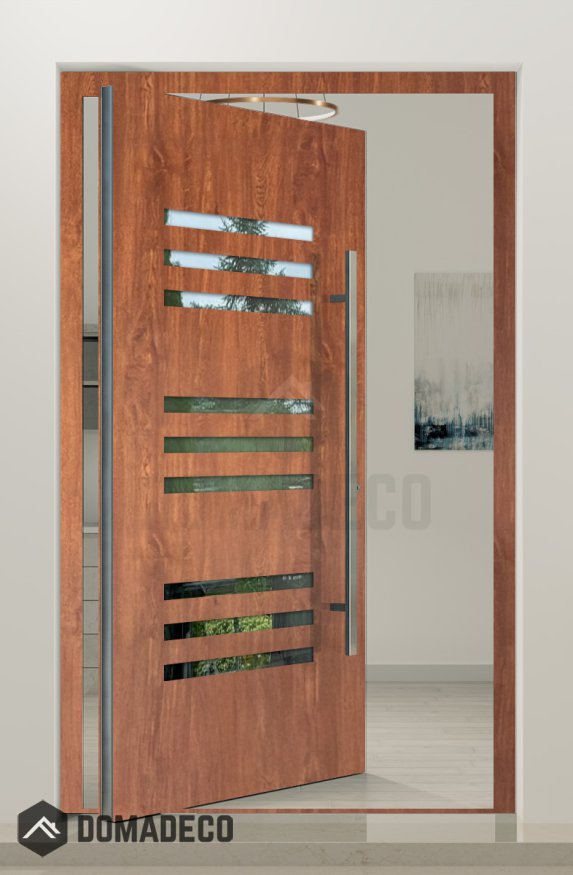

PIVOT C24 - aluminum pivot front door with vertical windows

SKU
PIVOT C24
AVAILABLE
A$17,620.00

The price includes TAX & shipping

Click here to select the configuration

Doors are manufactured after the order has been placed through the website.
Production time for our doors:
door named PIVOT (aluminium) - production takes 6 weeks

Size pivot door with frame:
Width from: 1400mm to 2000mm
Height from: 2000mm to 2940mm

Available door colors:
anthracite, white, black, silver gray, red, blue, yellow, brown, green, walnut, wenge, golden oak, mahogany, custom from RAL palette

You can order this door model in a smaller size. View LIM C24

Technical specifications

Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Burglar resistance RC2/WK2
Thermal insulation Ud = 0.83 W/K*m2

The door set includes:

- Aluminium pivot door and the door frame;
- the door handle;
- FUHR 835 4-point lock
- low threshold door
- Standard lock insert with 5 keys.

Full door information

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be between 5 mm to 20 mm on each side.

Frequently Asked Questions: click here to check

-
+
A$17,620.00

The price includes TAX & shipping

We found other products you might like!

Technical specifications:

  • frame depth door: 78 mm / 3.1",
  • Depth Vent: 78 mm / 3.1"
  • Air tightness: Class 4 (600Pa)
  • Wind load resistance: Class C3 (1200Pa)
  • Water tightness: Class 4A (150Pa)
  • Opening & closing resistance: Class 5
  • standard glazing package 4th/16Ar/4/16Ar/4th [Ug=0,6]*
  • Burglar resistance: RC2
  • Thermal insulation: Ud = 0.83 W/K*m2 / R-Value 6.8

The door set includes:

  • Aluminium pivot door and the door frame;
  • the door handle;
  • FUHR 833 3-point lock
  • low threshold door
  • standard lock insert with 5 keys.
Pivot door in full glass version

Pivot door with an aluminum overlay panel

Glazing

The glass in our doors are triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1

standard glazing package 4th/16Ar/4/16Ar/4th

safety glass 33.1//4//4

P4 anti-burglary

Types of glazing

There is a wide range of glass options. In our offer one will find energy-saving, sound-absorbing, safety, anti-burglary and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass as well as bronze reflex glass.

Colours

Colours can emphasise the shape of aluminium joinery and provide it with individual character and genuine appearance. All aluminium systems offered are available in two colour palettes – RAL and DECORAL.
RAL Basic colour palette.

Fiery red or maybe a delicate blue? The RAL K5 Classic colour palette will allow you to choose the colour of the door perfectly suited to your requirements!



RAL 1003

RAL 2004

RAL 3020

RAL 5002

RAL 6005

RAL 6021

RAL 7016

RAL 7039

RAL 7040

RAL 9016

RAL 9005

RAL 9007

Touch line handles

Touch line handles are made of the highest quality materials. They are available in anodized versions (covered with a layer of aluminum oxide) and powder coated in the entire range of the RAL palette (400 + colors).

Sublime, timeless design makes these elegant handles emphasize the appearance of each door.

T-bar - long vertical handle or normal handle:

Stainless steel door handles are designed for one or two-sided use for external doors.
The innovative mounting system enables quick and easy installation of the door handle. Our offer includes many handrails:




Q10
T-bar with a square section of 40×40 mm / 1.6"x1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Q45
T-bar at an angle of 45 degrees with a square section of 40 × 40 mm / 1.6"x1.6"
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

P10
T-bar with a round cross-section ⌀ 40 mm / 1.6" .
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9"

P45
T-bar at an angle of 45 degrees with a round cross-section ⌀ 40 mm / 1.6".
Available in lengths: 1200 / 47.2", 1600 / 63", 1800 mm / 70.9".

Z18
Black, designer handle.
Available in length 480 mm / 18.9".

Z20
Black T-bar with an interesting design
Available in length 498 mm / 19.6".

Z32
Black T-bar with an interesting curve that can also be used for all-glass doors
Available in length 499 mm / 19.6".

Z24
Black, oval handle
Width 450 mm/ 17.7"

Z52
T-bar round z52 copper
⌀ 198 mm / 7.8"

Z53
T-bar round z53 silvershine
⌀ 198 mm / 7.8"

Z54
T-bar round z54 slivergalaxy
⌀ 198 mm / 7.8"

Recessed
T-bar recessed
Available in lengths: 1200 mm / 47.2" and 1800 mm / 70.9"

Multipoint locking system Fuhr 835

Automatic multipoint locking system with a deadlocking latch.

Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.

After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.



The most important features:

Increased security – due to automatic locking there is no need for conventional locking with using a key.

Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.

Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.

Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.



Locking the lock:
  • After closing the door, the latch in the main lock and additional bolts automatically lock the door.
  • A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
  • Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.



Class A insert 6.D.C cylinder with keys

Durability: 100 000 cycles
Security rating: Class 6 the highest
Attack resistance: Class D the highest
Burglar resistance: Class C the highest

Certified, cylindrical, profiled 9-ratchet insert (two rows of latches). Innovative anti-drill and anti-picking protection. Inserts resistant to bumping. 5 keys included, key code card.

Write Your Own Review
You're reviewing:PIVOT C24 - aluminum pivot front door with vertical windows
Your Rating

La puerta principal pivotante de aluminio PIVOT C24 con ventanas verticales es una combinación perfecta de diseño contemporáneo, funcionalidad y durabilidad, creada para realzar la entrada de cualquier hogar moderno o espacio comercial. Esta puerta destaca por su estética elegante y minimalista y su innovador funcionamiento pivotante, lo que la convierte en una sofisticada alternativa a las puertas batientes tradicionales.

La esencia de la PIVOT C24 es su exclusivo mecanismo pivotante, que permite que la puerta gire suavemente sobre un punto de pivote central o descentrado, en lugar de las bisagras laterales convencionales. Este diseño no solo crea un llamativo elemento arquitectónico, sino que también facilita aperturas más amplias y flexibles, mejorando el flujo entre las zonas interiores y exteriores. El movimiento pivotante confiere a la puerta una sensación de elegancia flotante, convirtiéndola en un punto focal cautivador para cualquier fachada.

Fabricada en aluminio de alta calidad, la PIVOT C24 ofrece una resistencia y una flexibilidad excepcionales, al tiempo que mantiene un perfil ligero. La resistencia natural del aluminio a la corrosión, a la intemperie y al desgaste garantiza que esta puerta se mantenga robusta y atractiva durante muchos años, requiriendo un mantenimiento mínimo. Esto la convierte en una opción ideal para zonas expuestas a diversas condiciones climáticas, así como para entradas con mucho tráfico, donde la durabilidad es esencial.

La inclusión de ventanas verticales integradas en el diseño de la puerta añade tanto atractivo estético como ventajas prácticas. Estos paneles de vidrio delgados y alargados se extienden verticalmente a lo largo de la altura de la puerta, lo que permite que entre abundante luz natural en el espacio interior sin comprometer la privacidad ni la seguridad. El vidrio utilizado suele ser de doble o triple acristalamiento con propiedades de aislamiento térmico, lo que mejora la eficiencia energética al reducir la transferencia de calor y minimizar la contaminación acústica, creando así un ambiente cómodo y acogedor en el interior.

La personalización es otra de las características destacadas de la PIVOT C24. Está disponible en una amplia gama de colores, acabados y texturas para complementar diversos estilos arquitectónicos, desde los ultramodernos hasta los industriales chic. El acabado con recubrimiento en polvo no solo ofrece un aspecto de primera calidad, sino que también proporciona una excelente protección contra la decoloración, los arañazos y los daños ambientales, lo que garantiza una belleza duradera.

La seguridad es primordial en el diseño de la PIVOT C24. Equipada con sistemas de cierre avanzados y marcos reforzados, esta puerta ofrece una protección robusta contra las entradas forzadas. Los herrajes pivotantes de precisión garantizan un funcionamiento suave y equilibrado, al tiempo que mantienen la estabilidad estructural, lo que da a los usuarios confianza tanto en la funcionalidad como en la seguridad.

Además, la puerta se puede personalizar con una variedad de opciones de herrajes, incluyendo manillas y cerraduras en diferentes estilos y acabados, lo que permite un toque personalizado que se alinea perfectamente con la visión general del diseño. Tanto si prefiere líneas minimalistas y elegantes como herrajes atrevidos y llamativos, la PIVOT C24 se adapta a sus preferencias.

En resumen, la puerta de entrada pivotante de aluminio PIVOT C24 con ventanas verticales es una solución sofisticada, duradera y muy funcional. Su combinación de moderna tecnología pivotante, elegantes acristalamientos verticales y materiales de primera calidad la convierten en la opción ideal para aquellos que buscan hacer una declaración arquitectónica atrevida mientras disfrutan de una mayor luz natural, eficiencia energética y seguridad. Transforme su entrada con la PIVOT C24 y experimente la perfecta armonía entre estilo y rendimiento.
