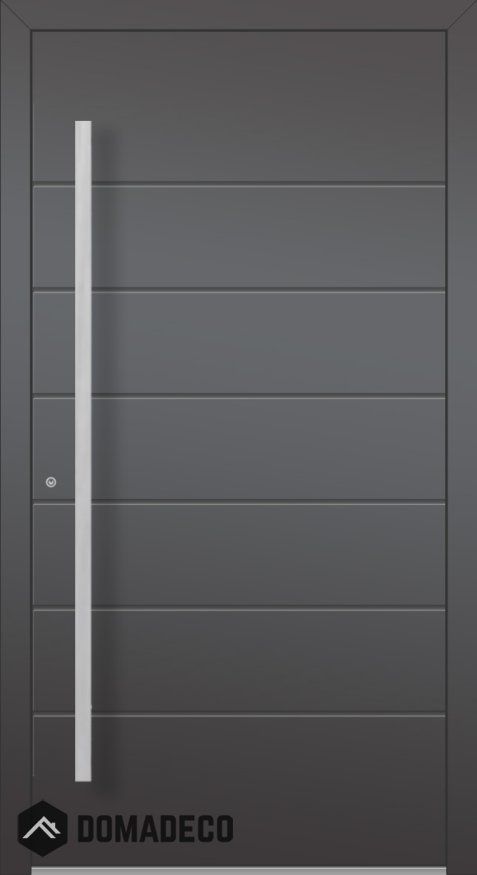

LIM AP05 - aluminium front door

SKU
LIM ap05
Rating:
100% of 100
AVAILABLE
$5,540.00
Click here to select the configuration

Size door with frame:
Width from: 900mm to 1300mm
Height from: 2000mm to 2440mm

The THERMO-ALU INOX series is a product with an increased thermal insulation (Ud = 1.0W/(m2*K). It is based on ALUPROF MB-70 PASSIVE systems with side panels.

The door width and height can be extended with the help of additional side panels and upper transoms. Those can be made in plain glass, with a decor-matt or simply frosted glass with a pattern matching the pattern of the door leaf.

The multi-point lock FUHR is used for locking. It has many locking and control configurations.
Hinges: the choice of wing or roller hinges (WALA) and concealed hinges (AXXENT).
Glazing in the door leaf: triple glazing glass of Ug = 0,5 W/(m2*K).
Thickness of polyurethane foam in the leaf: 70 mm.

Additional options to increase the burglary resistance of the door:
- 6D-C class inserts,
- anti-burglary protection of hinges,
- the P4 class of the glass.

The door set includes:

- Aluminium door and the door frame;
- the GreenteQ door handle made of stainless steel;
- 3-part roller hinges in the same color as the door;
- Multipoint locking system 855GL : full locking in 7 points, - 2 hooks, - 4 bolts plus upper bolt
- Threshold strip 20 mm height;
- Standard lock insert with 5 keys.

The door is already mounted onto the frame (prehung door), which saves you all the work. The door is completely ready for installation.

The picture showing how to take the measurement. Click here
The installation space between the frame and the wall can be up to 2 cm.

Frequently Asked Questions: click here to check

$5,540.00
-
+
More Information
Door material aluminium
